iCAR 03T

PRODUCT DETAILS

iCAR 03T - Complete Specifications

iCAR 03T ALL-ELECTRIC OFF-ROAD

Electric Off-Road SUV | Enhanced Ground Clearance | Advanced 4WD System

520 km
2WD Range (CLTC)
501 km
4WD Range (CLTC)
200 mm
Ground Clearance
30 min
Fast Charge 30-80%

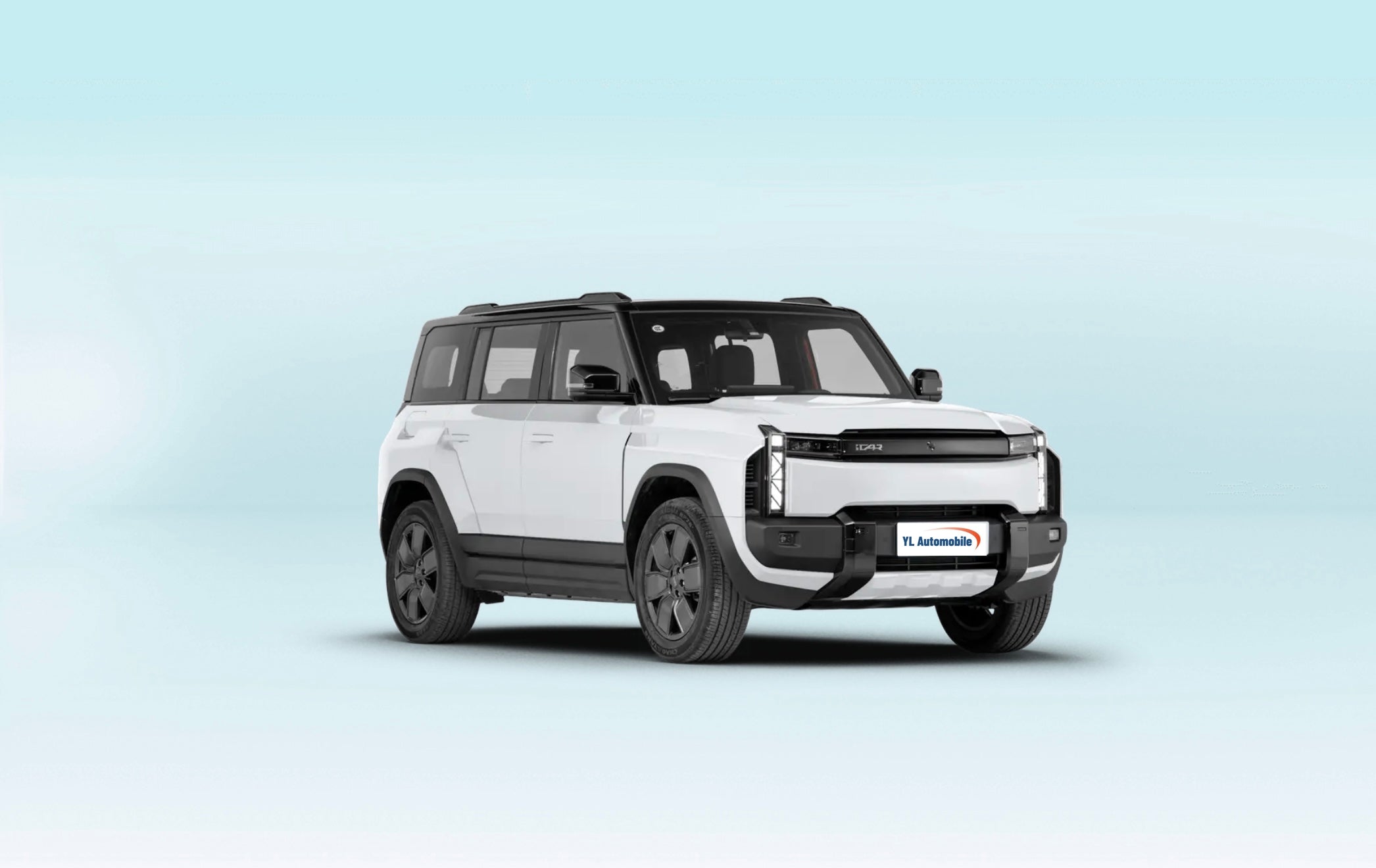

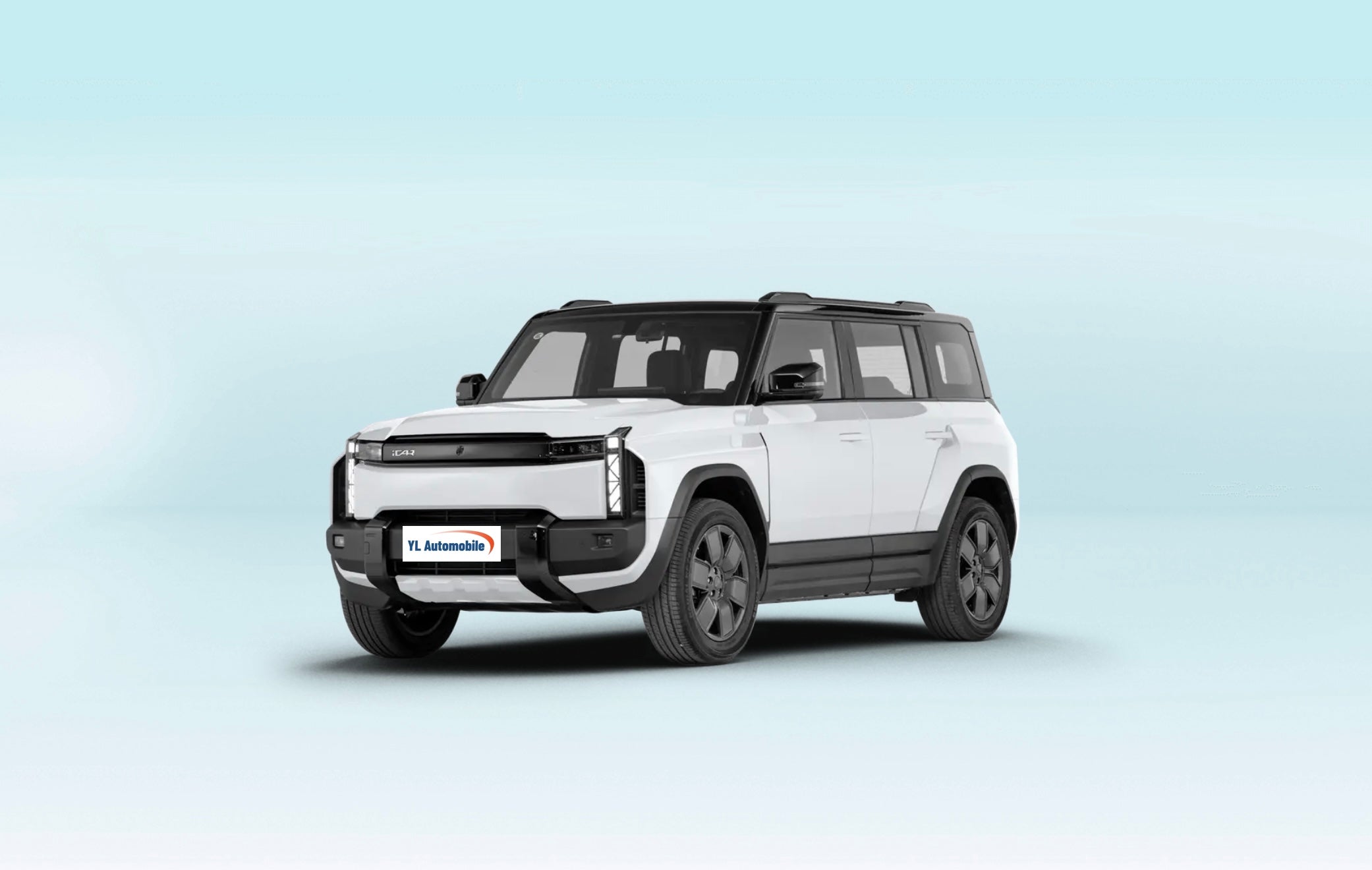

Exterior Design

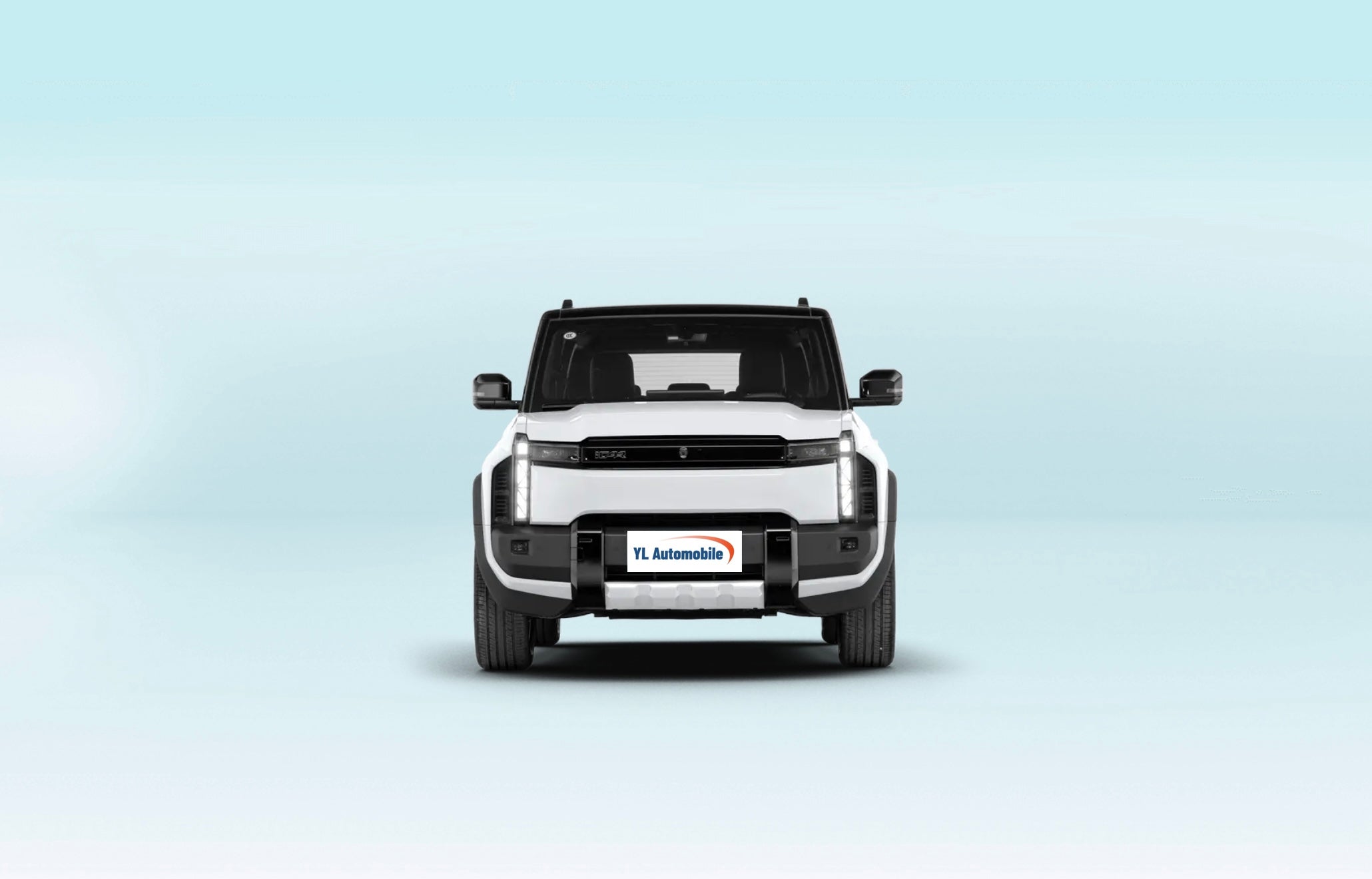

The iCAR 03T is equipped with an off-road style package that features a wider front fascia with air intakes on both sides and powerful wheel arches. The front bumper has a new design that enhances the vehicle's wild look. The roof racks with integrated LED lights, which were fitted to the previously unveiled version, have been removed.

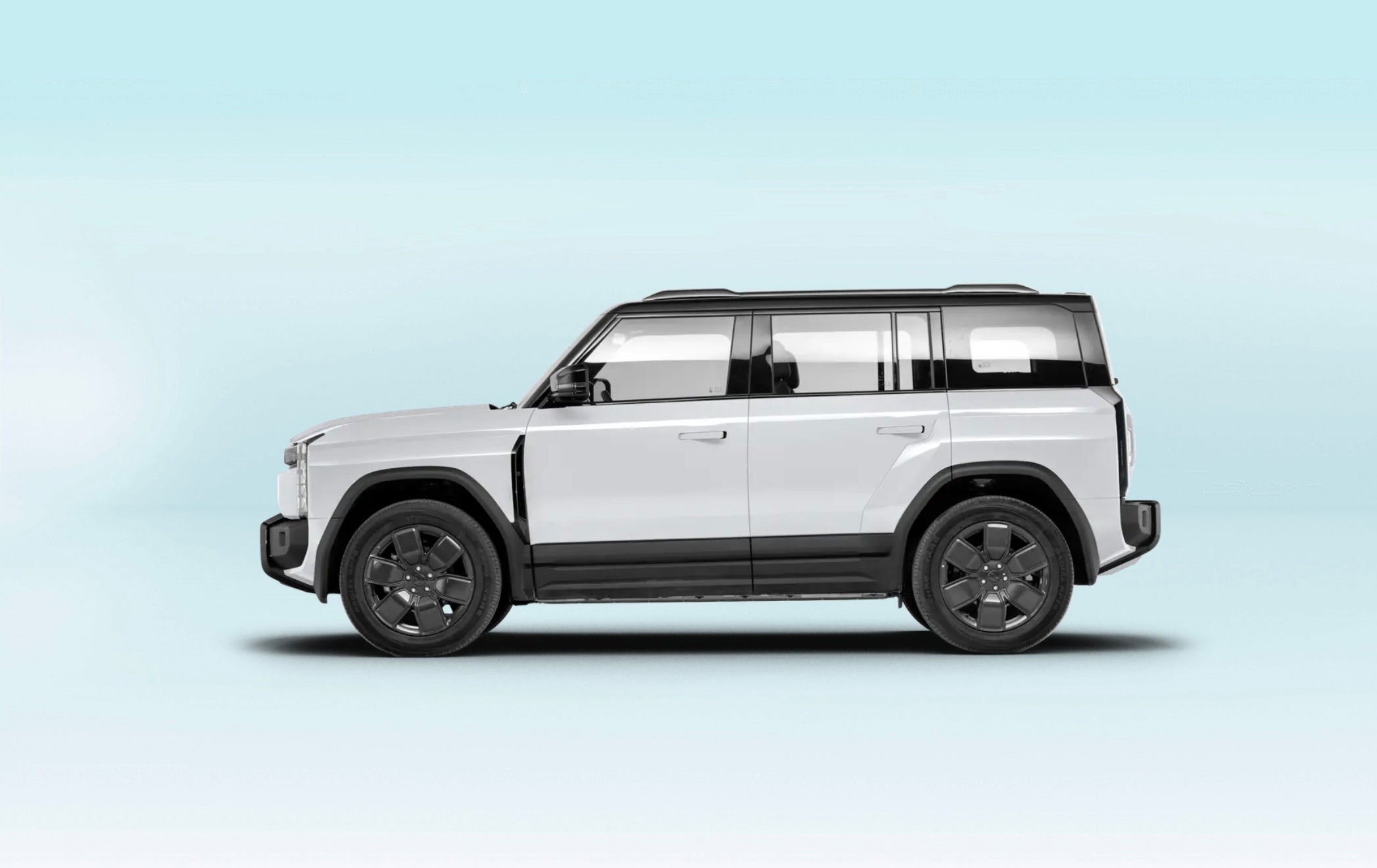

On the side, the new chassis is 15 millimeters higher than the regular model, with an unladen ground clearance of 200 millimeters, and a 28-degree approach angle, 31-degree departure angle and 20-degree passing angle, which provide greater passing power.

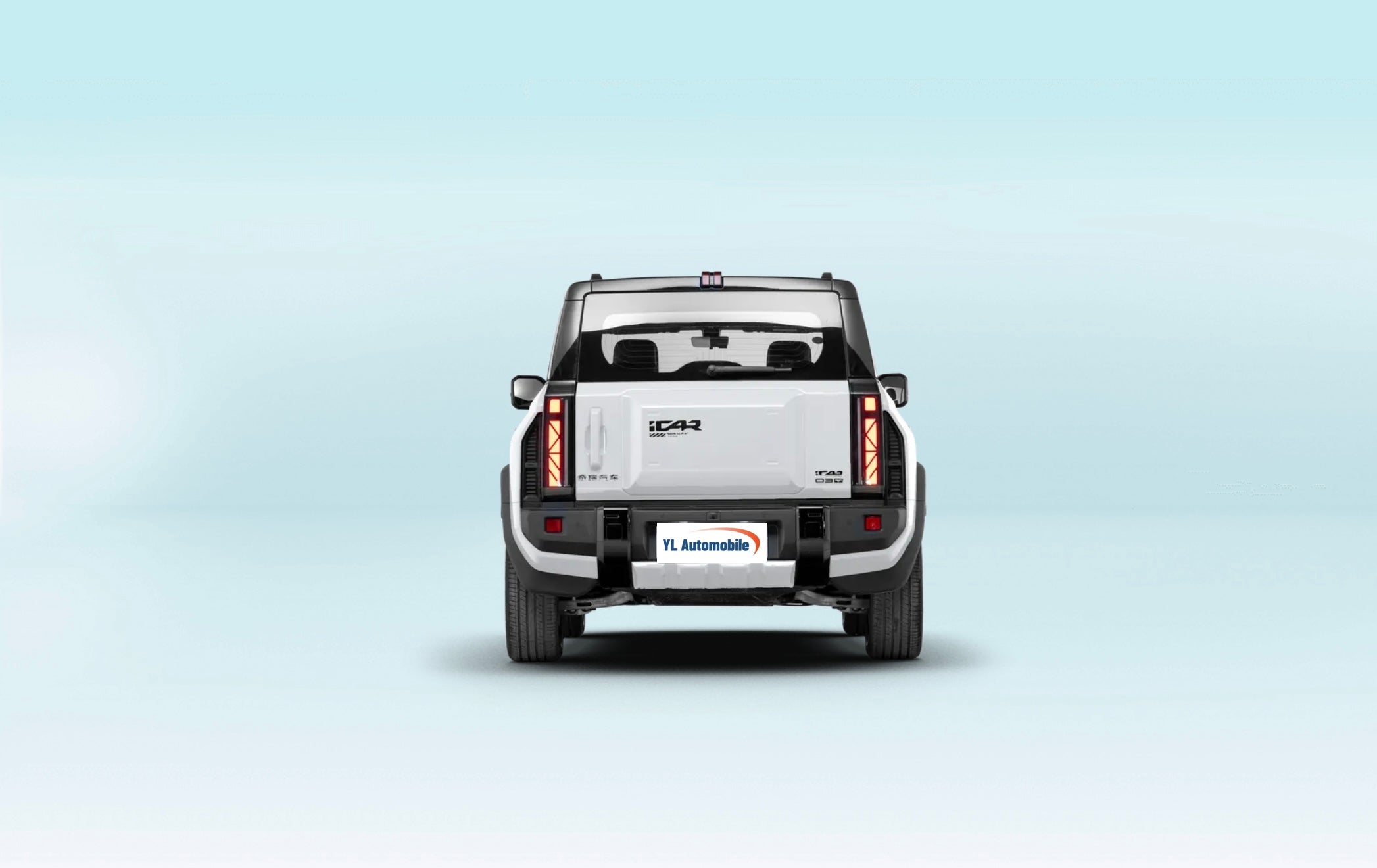

At the rear, the new car is equipped with a new off-road style rear bumper, which echoes the design of the front end. In terms of dimensions, the iCAR 03T measures 4,380 mm in length, 1,916 mm in width and 1,741 mm in height, with a wheelbase of 2,715 mm.

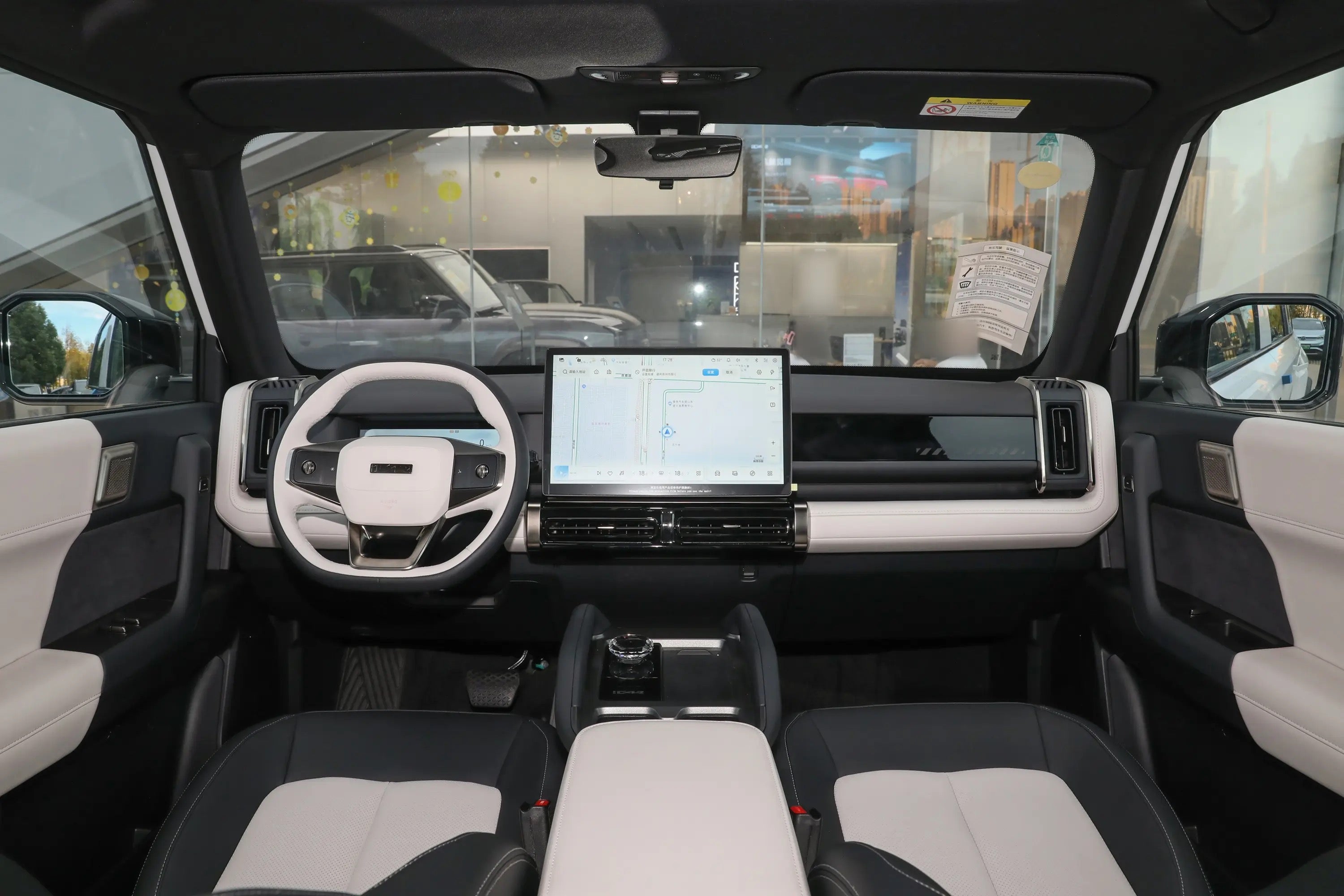

Interior Design

The new car is equipped with 9.2-inch full LCD digital instrumentation and 15.6-inch intelligent IMAX center control screen. The in-vehicle system is equipped with Qualcomm Snapdragon 8155 cockpit chip, which supports multi-functional intelligent voice control, cell phone App remote car control, car-machine interconnection mapping (Hicar), and 50W wireless charging for cell phones, and other functions.

Power

The iCAR 03T is available in single-motor two-wheel drive and dual-motor four-wheel drive. The single-motor version has a maximum power of 135 kW, while the front and rear motors of the dual-motor version have a maximum power of 70 kW and 135 kW respectively. The two-motor model is equipped with the iWD intelligent electric four-wheel drive system, which provides a variety of driving modes. The range is 520 kilometers for the 2WD version and 501 kilometers for the 4WD version.

Complete Specifications

Off-Road Capabilities

  • • Approach Angle: 28°
  • • Departure Angle: 31°
  • • Passing Angle: 20°
  • • Ground Clearance: 200mm
  • • Wading Mode Available
  • • Tank Turn Function (4WD)

Advanced Technology

  • • Qualcomm Snapdragon 8155 Chip
  • • 15.6" IMAX Center Screen
  • • 9.2" Digital Instrument Cluster
  • • 50W Wireless Phone Charging
  • • HUAWEI HiCar Support
  • • OTA Updates
Specification 2024
iCAR 03T
520km 2WD Long Range Edition
RWD520km
2024
iCAR 03T
501km 4WD Long Range Edition
4WD501km
Basic Information
Availability 2024.08 2024.08
Vehicle Class Compact SUV Compact SUV
Length×Width×Height (mm) 4380×1916×1741 4380×1916×1741
Type of Energy All-Electric All-Electric
CLTC Range (km) 520 501
Total Motor Power (kW) 135 205
Total Motor Torque (N·m) 220 385
Maximum Speed (km/h) 150 150
Battery Type Lithium Iron Phosphate (LFP) Lithium Iron Phosphate (LFP)
Battery Capacity (kWh) 69.77 69.77
Fast Charging Time (h) 0.5 (30-80%) 0.5 (30-80%)
Body
Length (mm) 4380 4380
Width (mm) 1916 1916
Height (mm) 1741 1741
Wheelbase (mm) 2715 2715
Front Track (mm) 1626 1626
Rear Track (mm) 1645 1645
Curb Weight (kg) 1817 1914
Number of Doors 5 5
Number of Seats 5 5
Electric Motor
Total Motor Power (kW) 135 205
Total Motor Torque (N·m) 220 385
Front Motor Power (kW) - 70
Front Motor Torque (N·m) - 165
Rear Motor Power (kW) 135 135
Rear Motor Torque (N·m) 220 220
CLTC Range (km) 520 501
Battery Capacity (kWh) 69.77 69.77
Power Consumption (kWh/100km) 15.5 16.5
Electricity-equivalent Fuel Consumption (L/100km) 1.8 1.92
Fast Charging Time (h) 0.5 0.5
Motor Type Permanent Magnet Synchronous Permanent Magnet Synchronous
Number of Drive Motors Single Motor Dual Motor
Motor Layout Rear Front and Rear
Battery Cell Brand CATL CATL
Battery Cooling Liquid Cooling Liquid Cooling
Fast Charging Function
Battery Preheating
External Discharge
Chassis/Steering
Drive Type RWD 4WD
Front Suspension MacPherson Independent MacPherson Independent
Rear Suspension H-arm Multi-link Independent H-arm Multi-link Independent
Steering Assist Electric Power Steering Electric Power Steering
Wading Mode -
Tank Turn -
Wheels/Brakes
Front/Rear Brakes Ventilated Disc / Disc Ventilated Disc / Disc
Parking Brake Electronic Electronic
Front Tire Specification 245/55 R19 245/55 R19
Rear Tire Specification 245/55 R19 245/55 R19
Wheel Material Aluminum Alloy Aluminum Alloy
Safety Features
ABS Anti-lock
Brake Force Distribution
Brake Assist
Traction Control
Stability Control
Front Airbags Driver + Passenger Driver + Passenger
Side Airbags
Head Airbags (Curtain) Front + Rear Front + Rear
Tire Pressure Monitoring ● Display ● Display
Seat Belt Reminder Driver + Passenger Driver + Passenger
ISOFIX Child Seat Anchors
Anti-Rollover System
Driver Assistance
Parking Radar Front + Rear Front + Rear
Parking Camera 360° Panoramic 360° Panoramic
Transparent Chassis
Cruise Control ● (Optional Adaptive) ● (Optional Adaptive)
Driving Modes Sport/Economy/Standard/Custom Sport/Economy/Standard/Snow/Off-road/Custom
Hill Descent Control
Hill Start
