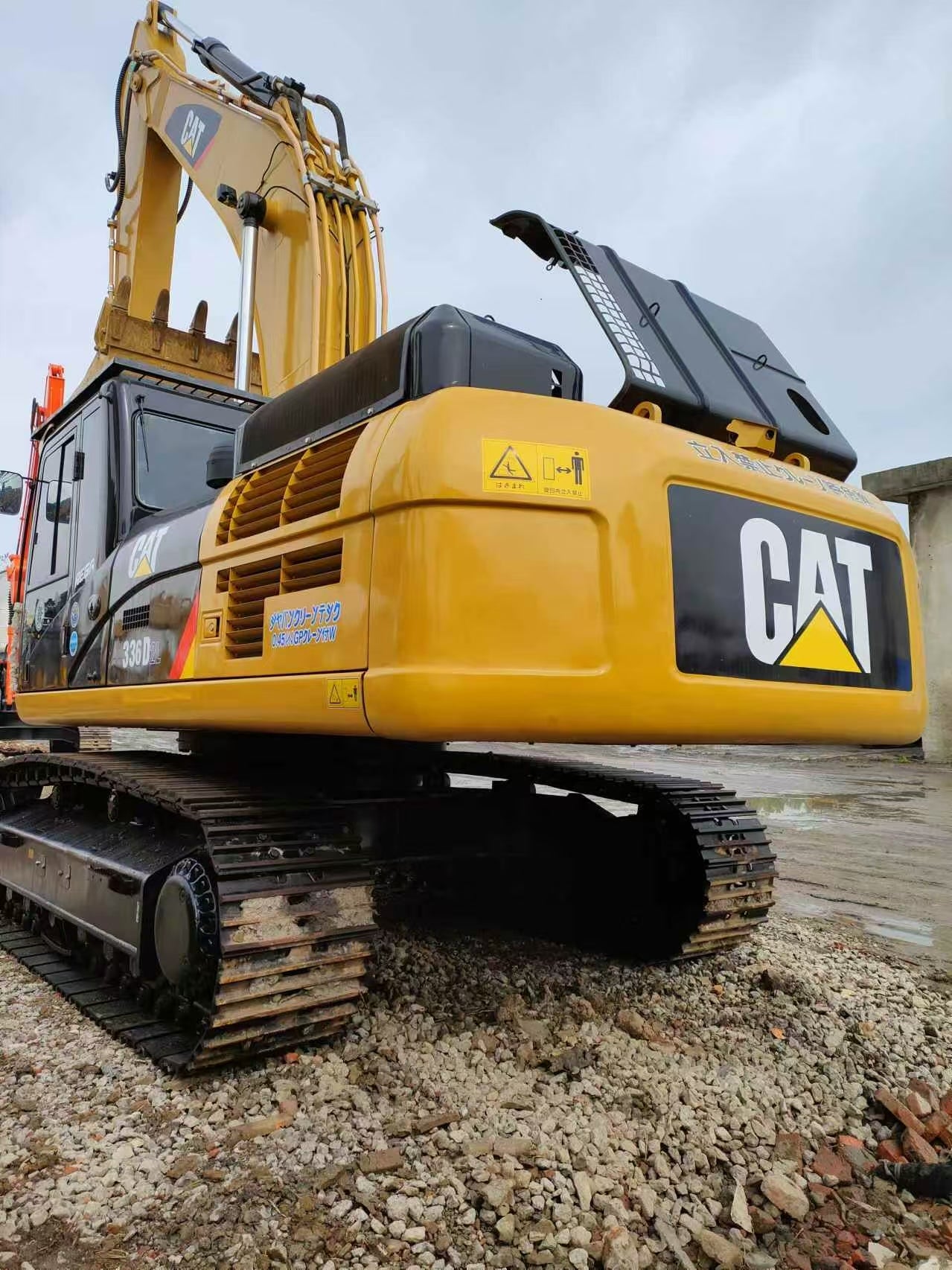

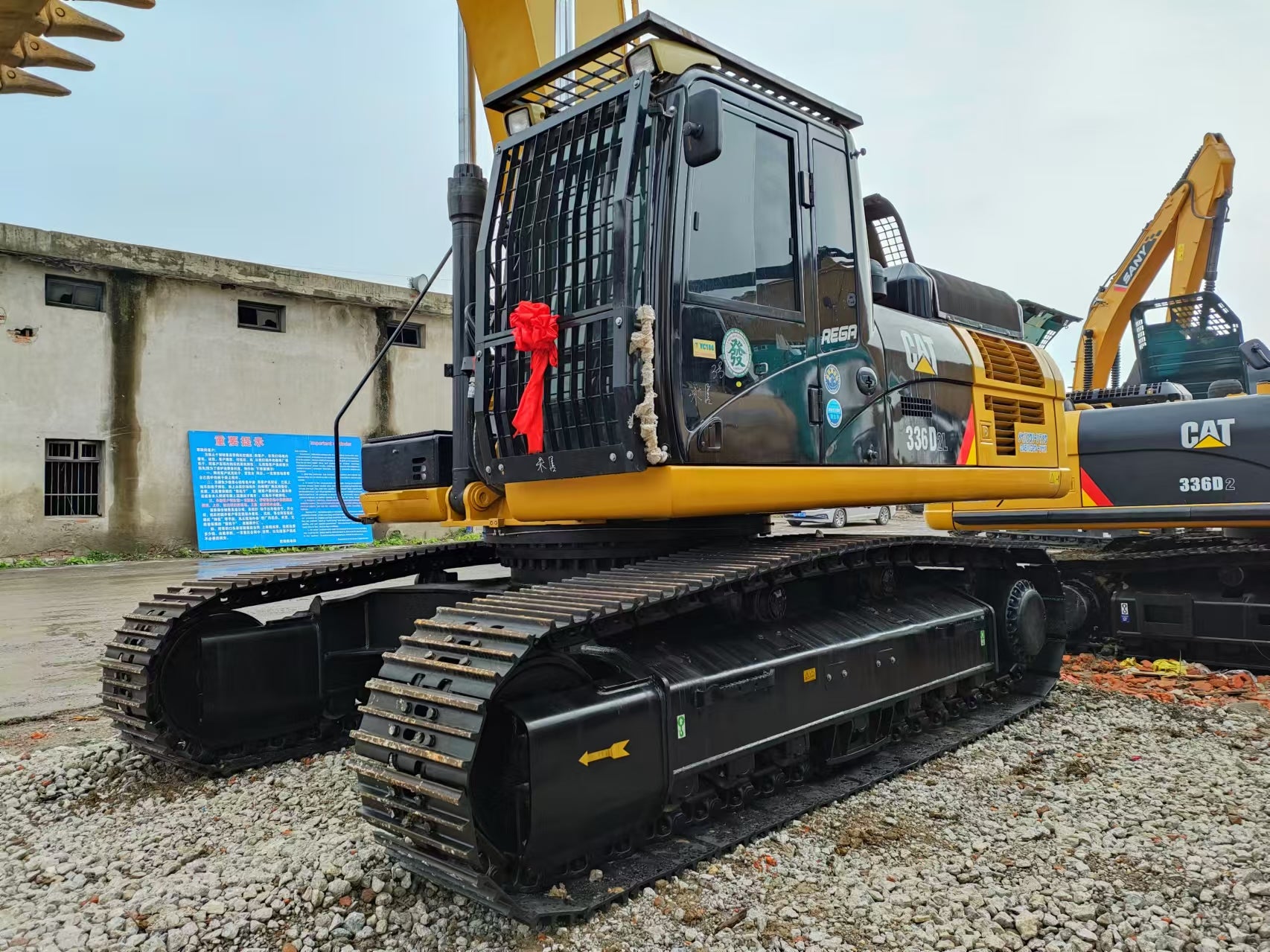

Caterpillar 336D Excavator
PRODUCT DETAILS
If you are in Nigeria,
please do not hesitate to consult our local partner representative:
WhatsApp : +234 803 362 5226
E-mail : atmshafa@gamil.com
**Caterpillar 336D Excavator Specifications:**
1. **General:**
* Operating Weight (kg): 33,750
* Bucket Capacity (m³): 1.4
* Stick Length (mm): 6,500
* Boom Length (mm): 3,200
2. **Performance:**
* Swing Speed (rpm): 10
* Travel Speed (km/h): 3 / 5
* Gradeability: 70% / 35°
* Bucket Digging Force (kN): 222
* Stick Digging Force (kN): 146
3. **Engine:**

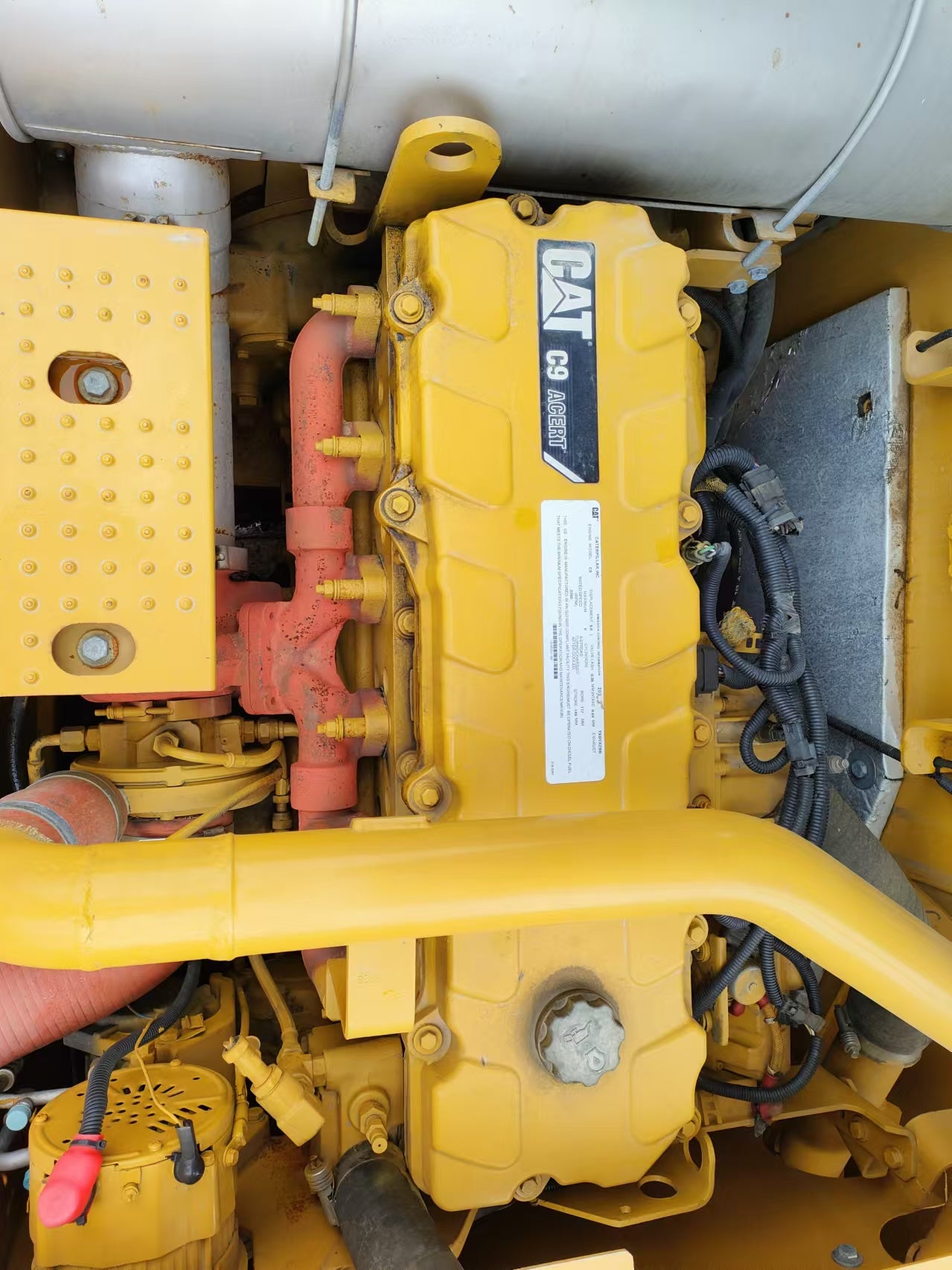

* Engine Model: C9 ACERT
* Rated Power (kW @ rpm): 200 @ 1,900
* Number of Cylinders: 6
* Bore × Stroke (mm × mm): 110 × 127
4. **Hydraulic System:**
* Main Pump Max. Flow (L/min): 280
* Main Relief Valve Setting (MPa): 35
* Work Circuit (MPa): 35
* Travel Circuit (MPa): 35
* Swing Circuit (MPa): 28
* Pilot Circuit (MPa): 3.9
* Boom Cylinder - Number × Bore × Stroke (mm): 2 × 150 × 1,440
5. **Fluid Capacities:**
* Fuel Tank (L): 620
* Hydraulic Tank (L): 175
* Hydraulic System (L): 410 (including tank)
* Engine Oil Change (L): 40
* Cooling System (L): 40
6. **Dimensions:**
* Transport Length (mm): 11,150
* Transport Width (mm): 3,190
* Transport Height (mm): 3,340
* Cab Height (mm): 3,140
* Counterweight Clearance (mm): 1,220
* Track on Ground (mm): 3,610
* Track Length (mm): 4,590
* Track Shoe Width (mm): 600
7. **Working Ranges:**
* Max. Digging Reach, Ground Level (mm): 10,920
* Max. Digging Depth (mm): 7,390
* Max. Digging Height (mm): 10,240
* Max. Dumping Height (mm): 7,200
* Max. Vertical Wall Digging Depth (mm): 5,830
