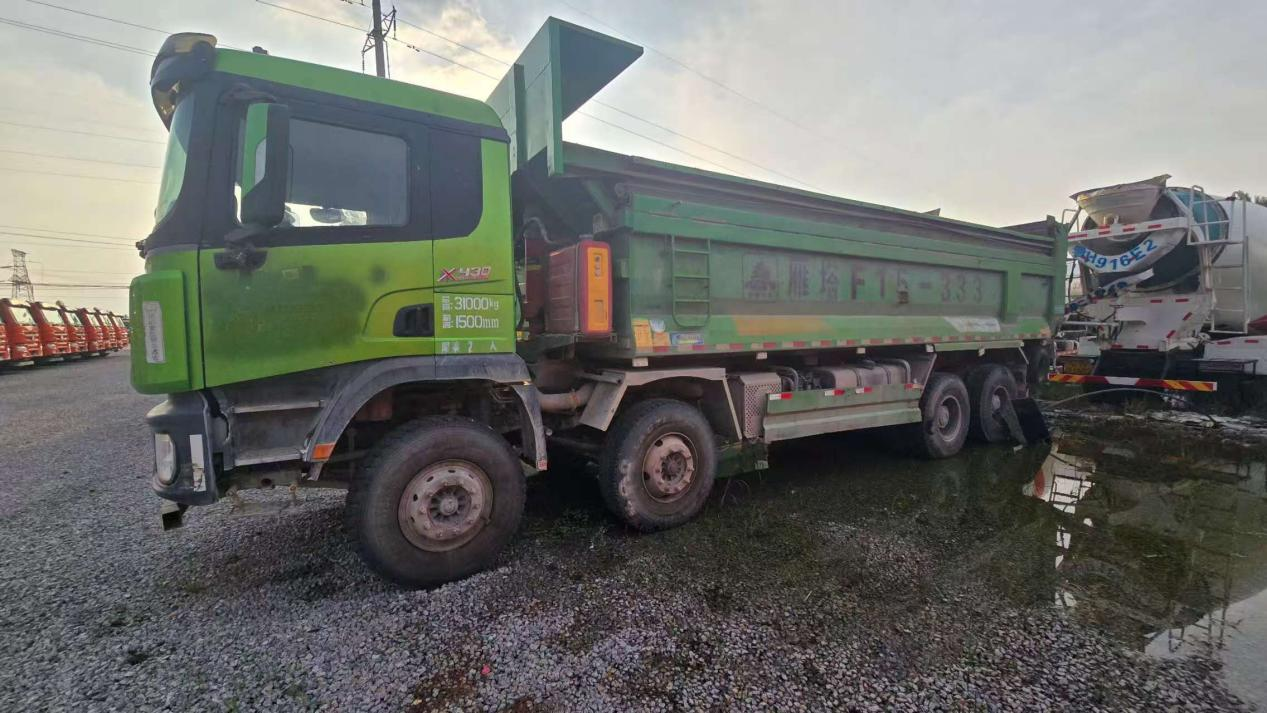

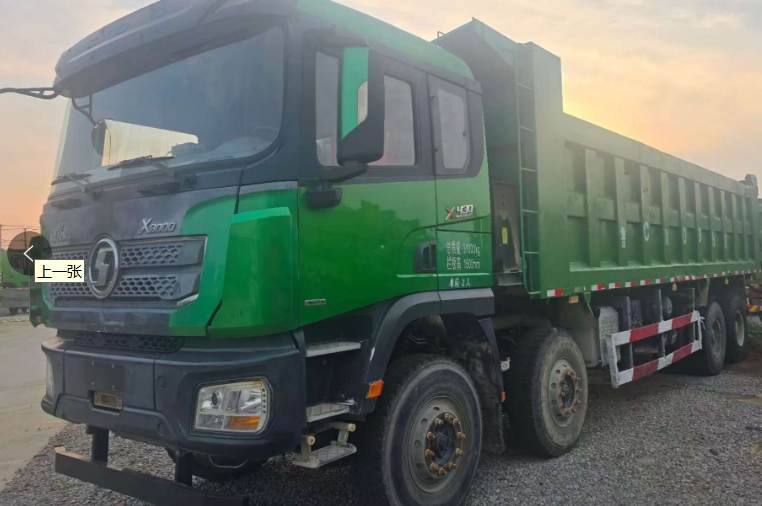

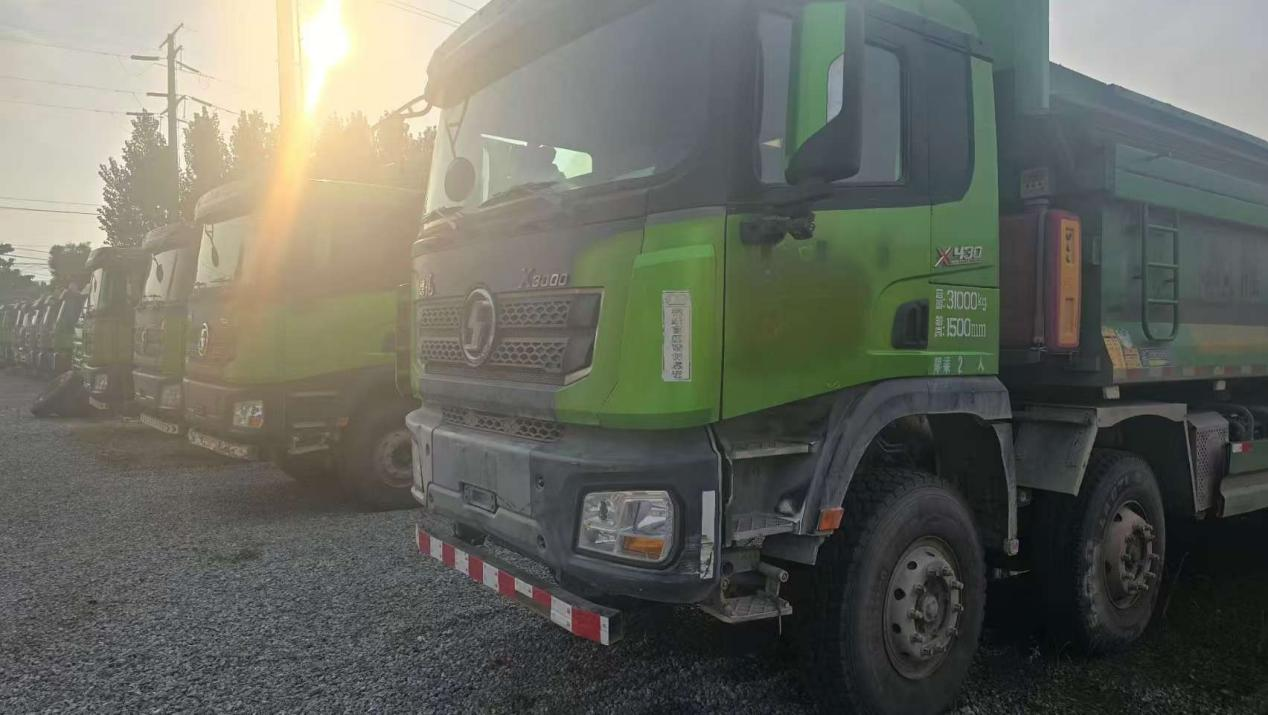

Used Truck Shacman

Driving form:

8X4

 wheel base ：

1800+4175+1400mm

 engine ：

Weichai WP12.430E50

 gear-box ：

Faist 12JSD200T-B

Rear axle speed ratio:

5.262

 length of wagon ：

10.95 meters

Body width:

2.55 meters

 height of the vehicle body ：

3.45 meters

 front gauge ：

2011/2011mm

 rear track ：

1860/1860mm

Vehicle weight:

15.5 tons

Rated load:

16.1 tons

 gross mass ：

31 tons

Tonnage class:

 heavy truck

 approach angle ：

15 degrees (°)

 departure angle ：

20 degrees (°)

 place of production ：

 Xi'an

 segment market ：

 heavy haulage

 axle ratio ：

5.262

Energy type:

 diesel oil

* License (yellow card/blue card):

 yellow card

 engine parameter

 engine type ：

Weichai WP12.430E50

Engine brand:

Weichai

Number of cylinders:

Six gallons

Fuel type:

 diesel oil

 displacement ：

11.596L

 effluent standard ：

Country V

 maximum horsepower ：

430 horsepower

 maximumoutput ：

316kW

 acrot orque ：

2060N·m

 maximum torque speed ：

1000-1400rpm

 rated speed ：

1900rpm

Engine type:

Six cylinder inline, electronically controlled high pressure common rail +SCR

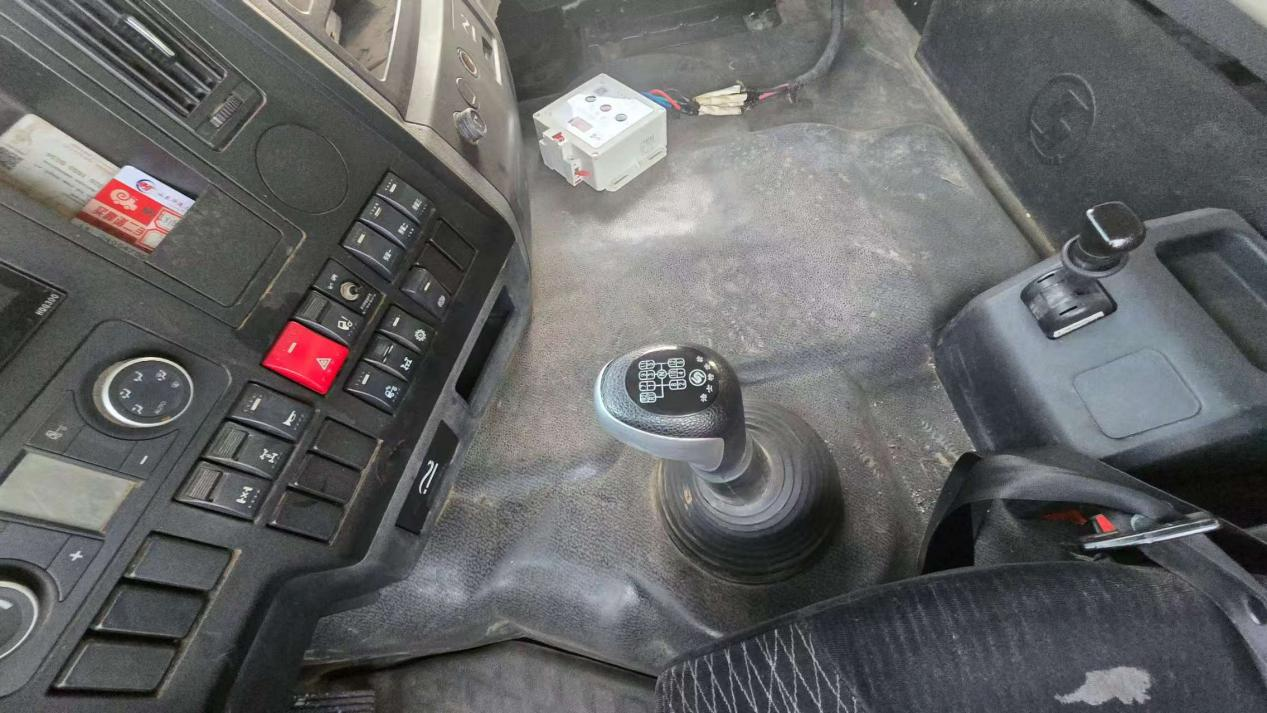

Transmission parameters

Transmission model:

Faust 12JSD200T-B

Transmission brand:

Fast

Forward gear:

12 plates

Reverse gear:

Two

Container parameters

Container length:

Eight meters

Truck bed width:

2.35 meters

Height of the container:

1.5 meters

Container type:

Rear flip dump type

Unloading form:

Back flip dump type

* Internal width of the cargo box:

2.3499999046326

Cabin parameters

Main driver's seat form:

Airbag shock absorber seats

 fuel cell

Tank material:

 alufer

 fuel tankage ：

400L

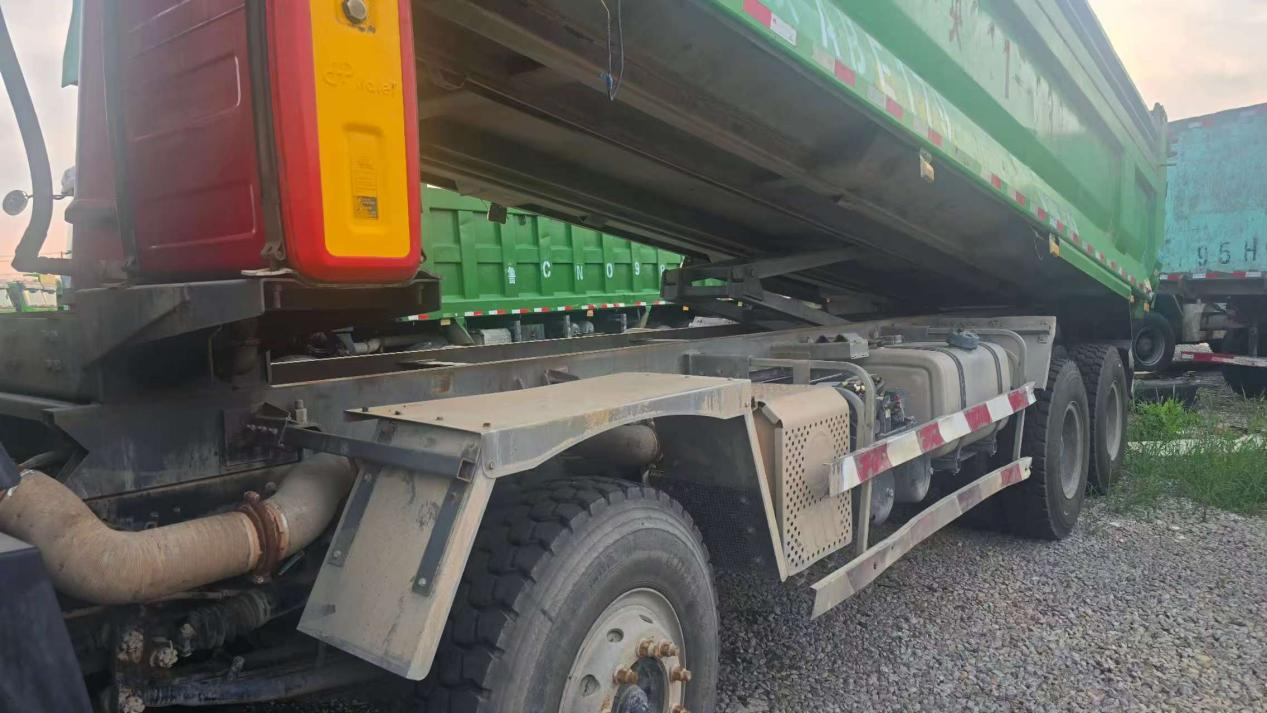

Chassis parameters

Front bridge load capacity:

6500/6500kg

Description of the rear bridge:

16T MAN double-stage cast bridge

Backbridge load capacity:

18,000 (two shaft sets) kg

 gear ratio ：

5.262

Number of spring plates:

Left 14 right 13 / left 14 right 13 / 12,10 / 10 / 10,14 / 14 / 12,14 / 13 / 12

 tyre

 tyre size ：

11.00-20 18PR,12.00-20 18PR,11.00R20 18PR,12.00R20 18PR,12R22.5 18PR

Number of tires:

Twelve
