Zeekr 9X

1. Core Technology – Sustainable Experience Architecture (SEA) Hybrid-S + 900 V Super PHEV

• 900 V end-to-end high-voltage platform: battery, e-motors, A/C compressor and wiring are all 900 V rated; peak charging > 600 kW, 20-80 % SoC in 9 min – the fastest charging PHEV on the market.
• SEA Super Hybrid power-train:
  – 2.0 T dedicated engine, 46 % thermal efficiency, 205 kW rated; <20 % SoC fuel consumption 30 % lower than segment average.
  – Three-motor layout (front 290 kW + rear 370 kW + rear 370 kW) gives 1 030 kW / 1 400 hp combined; 0-100 km/h in 3.1 s, top speed 240 km/h.
  – CATL co-developed 6 C “Xiao-Yao” LFP packs: 55 kWh (300 km CLTC) or 70 kWh (380 km CLTC).
• SEA AI digital chassis:
  – Dual-chamber air suspension + dual-valve CCD dampers, 110 mm lift range (178-288 mm ground clearance).
  – China-first 48 V active anti-roll bar delivering 1 400 N·m per side in 0.2 s.
  – “Post-collision 80 mm lift” – side-impact algorithm raises sill to reduce intrusion.

2. Performance & Efficiency

• Acceleration / top speed: 3.1 s quickest, all grades sub-4 s; V-max 240 km/h.
• Range: 300 km or 380 km pure-electric CLTC; total range > 1 300 km.
• <20 % SoC performance: 0-100 km/h only 0.2 s slower than fully charged; power fade <3 %.
• Off-road: 100 % max grade-ability; 8 drive modes (Snow, Sand, Mud, Rock, etc.); e-diff lock + air-springs + active anti-roll bar.

3. Intelligent Cockpit & Infotainment

• Five-screen layout: dual 17.6-inch 3 K OLED floating displays (driver & co-driver), 50-inch AR-HUD, second-row 17-inch ceiling-mounted slide screen (880 mm rail), rear-center control screen.
• Audio: optional Naim 32-speaker 3 860 W 9.2.4.8 system or Harman Kardon 31-speaker ANC; 8 seat transducers, 20 Hz-40 kHz bandwidth.
• Compute & UX: Qualcomm 8295 SoC; multimodal voice, gesture, face ID; ceiling screen tilts 0-90° for safe passenger viewing while driving.

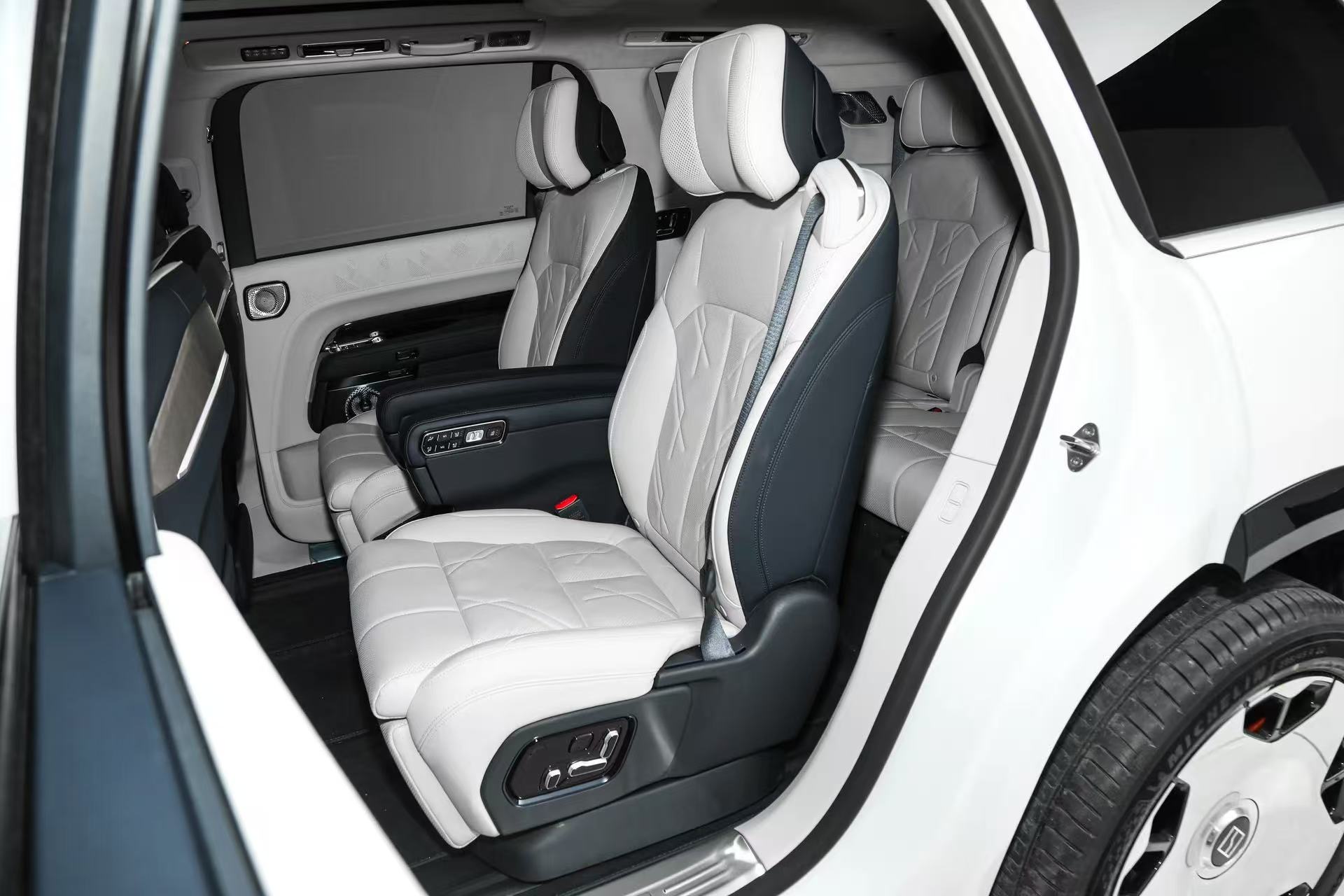

• Luxury touches: Nappa leather + recycled PET fiber; second-row zero-gravity seats with 50 W wireless charge, 13 L thermo-electric fridge, electric tray tables; 1.32 m² panoramic roof with separate skylights for rows 2 & 3.

4. Space & Practicality

• Exterior: 5 239 × 2 029 × 1 819 mm, wheelbase 3 169 mm.
• Seating: 3-row 6-seat, theatre rising (row-3 H-point +40 mm), 370 mm door opening width for easy entry.
• Cargo: 650 L behind row-3; 1 200 L with row-3 folded; 2 050 L with both rows down.
• Storage: 15 L dual-layer front console, 17 cupholders, 42 compartments in total.

5. AD & Safety

• Sensors: 5 LiDAR (1 × 520-line 300 m + 4 × solid-state 15 m) + 13 cams + 5 mmWave + 12 USS + 2 wading radars; full 4 × 360° coverage.
• Compute: dual NVIDIA Thor, 700 TOPS each; full-link redundancy enabling L3 highway & urban pilot.
• Body: 91 % high-strength steel + aluminum, torsional rigidity 41 600 N·m/deg; passes 50 km/h pole crash.
• Hybrid-specific safety: third crash box, octagonal battery cage, active HV junction flip, rear anti-intrusion block, etc.—branded “Hybrid Road Tank”.

6. Grades & Pricing (launch-benefit prices, CNY)

Summary
